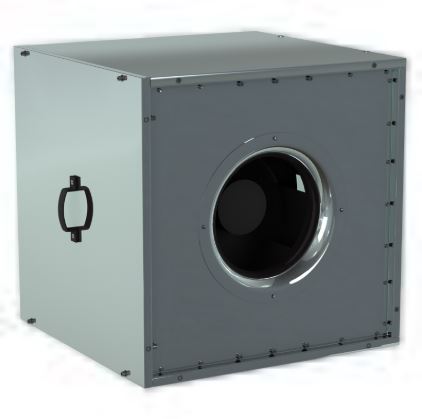

TCF Centrifugal Inline Fan|GEM 630S-4D

Key Features:

• Backward-Curved Centrifugal Impeller
  Efficiently generates strong airflow and excellent static pressure, well-suited for complex or extended duct runs.

• Robust Rectangular Housing
  Sturdy enclosure optimized for large 630 mm (approx. 25″) duct systems, providing streamlined airflow integration.

• High Airflow Performance
  Capable of delivering impressive airflow up to 12,420 m³/h (≈7,310 CFM).

• Industrial Motor Design
  Triple-phase (3ϕ), rugged motor rated at 815 W, operating at 415 VAC and 1.6 A for durability and continuous use.

• Low Noise & Vibration
  Maintains quieter operation at around 75 dBA during typical use.

• Balanced Build & Compact Speed
  Operates at approximately 1,320 RPM, offering a stable performance in industrial settings.
