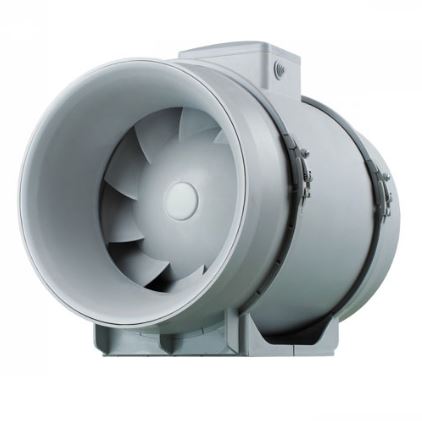

TCF Mixed Flow Inline Fan|Mix Pro 200

Key Features:

• Powerful Mixed-Flow Impeller
  Combines the benefits of axial and centrifugal fan designs, delivering exceptional airflow with superior pressure capabilities.

• High Airflow Capacity

  • Low Speed: approximately 830 m³/h

  • High Speed: up to 1040 m³/h

• Two-Speed AC Motor
  Offers adjustable performance via two discrete speeds, ideal for balancing airflow vs. noise efficiency.

• Sturdy, Weather-Resistant Build
  Constructed from polypropylene with IPX4-rated motor protection and built-in thermal overload safeguards. Rated for continuous operation with low flammability and up to 40,000 hours of motor service life

• Quiet Operation
  Sound pressure levels range from ~39 dB(A) at low speed to ~45 dB(A) at high speed, measured at 3 meters distance.

• Robust, Compact Design

  • Flow-through diameter (ØD): ~199 mm

  • Dimensions: width 239 mm, height 261 mm, length 295 mm

  • Weight: ~3.95 kg

• Flexible Installation & Maintenance
  Can be installed in any orientation (inline, wall, ceiling). Features a removable motor block for easy servicing.
